Orientation Mule-Shoe

Ancilliary Item

Orientation Mule-Shoe

An Orientation Mule-Shoe is a required component for effective downhole navigation surveying with the DeviGyro RG40 or DeviShot instruments, in the navigational drilling application.

Orientation Mule-Shoe
Weight
5.7kg/12.56lbs
Length
530mm/20.86in
Compatible sizes
100mm/3.93in to 400mm/15.78in
Material
Non-magnetic

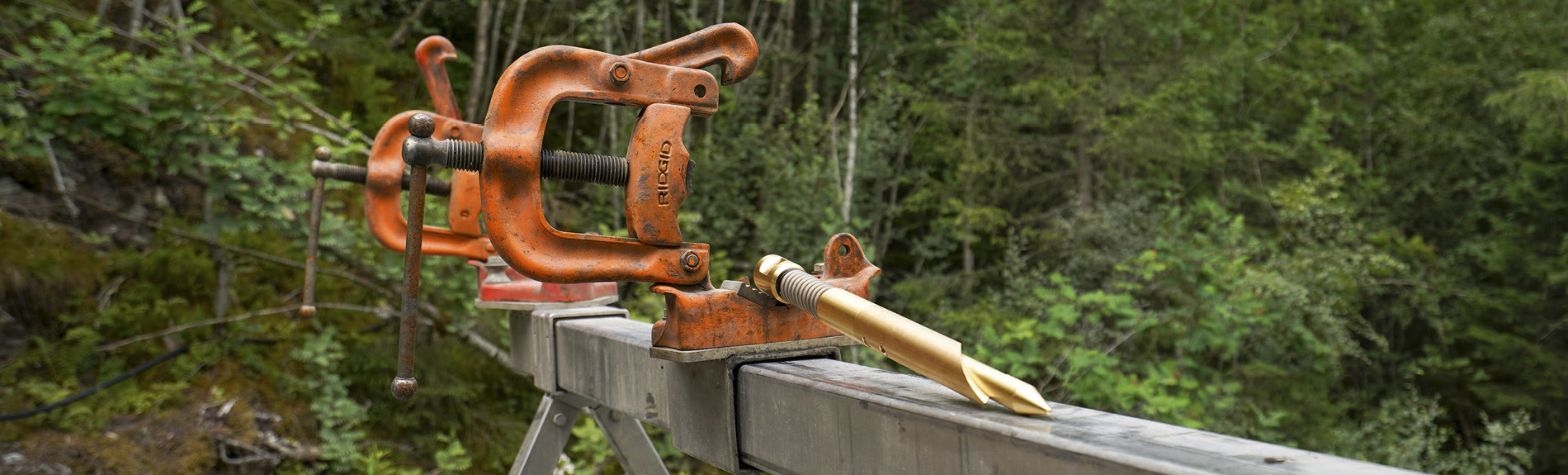

Attached to the bottom of the survey instrument, the Orientation Mule-Shoe has a landing sleeve that enables the survey instrument to align with the correlating pin inside the downhole motor or wedge (methods of Navigational Drilling). This process establishes the “high-side tool-face” of the survey instrument, which is essential for knowing the orientation of the downhole motor or wedge.

Combined with the advanced DeviGyro and DeviShot technology, the drill crew is effectively provided with the true orientation and positional data they need, in a timely manner, to be confident that are on plan and beginning the Navigational Drilling alteration correctly.

Features

  • Precise High-side tool-face data
  • Scandinavian Made – Robust and Reliable
  • Compatible with DeviGyro and DeviShot
  • Magnetic Tool Face
  • Gravity Tool Face

Application areas

  • Navigational Drilling

Request quote

Frequently asked questions about Orientation Mule-Shoe


What is High-side toolface?

High-side toolface is the angle of the borehole survey instrument within the drill hole, measured clockwise relative to up and in the plane perpendicular to the drill hole axis.
See answer

Does the Orientation Mule-Shoe come included in the DeviGyro and DeviShot kits?

No, Orientation Mule-Shoes are ancillary items and supplied on request.

See answer

What is the total length of the RG40 Standard with the Orientation Mule shoe attached?

1.95m/6.39ft (including the spear-head point).

See answer

Didn't find what you were looking for? Go to FAQ-page
