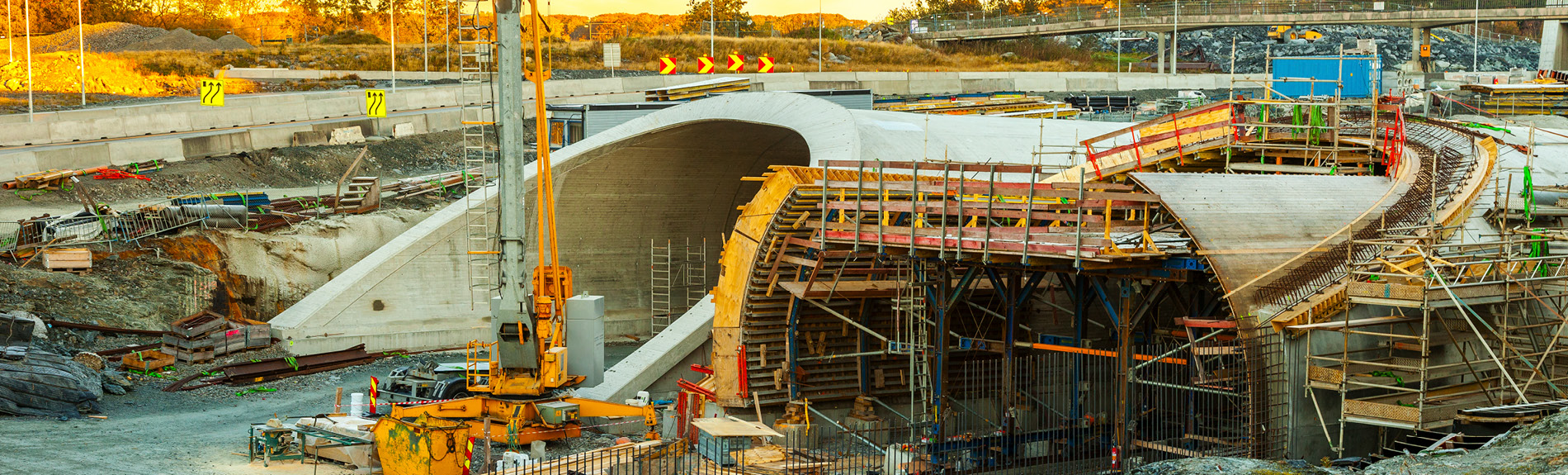

Tunnel Excavation


Tunnel excavation

Various types of drilling are performed from the tunnel face, including blast holes for excavation, pre-injection holes and freeze holes for stabilization and probe, or core drilling for exploring the upcoming rock formation.

Tunnel excavation


Each type of drilling has its own purpose and requirement. For blasting and pre-injection holes it is important that the path of the holes is known to secure a successful blasting or injection.

Freeze hole drilling requires multiple holes to drilled in a straight path next to each other, in order to secure the formation is evenly and properly frozen.

The path of probe and core holes is also important to know to understand to know exactly where the data was collected.


Precise drill rig alignment and downhole navigation surveying is required to know the deviation and exact location of the drill hole.

For blast-holes, the survey will help determine the amount of explosive needed for an optimal performed blasting procedure, while surveying pre-injection holes will reveal if the holes are positioned such that a sufficient grout cover will be achieved.

For other types of holes deviation data can help determine if a borehole needs to be re-drilled or directionally adjusted.

The Devico range of versatile borehole surveying solutions – such as the DeviAligner and DeviGyro – are specifically suited for a large variety of civil construction drilling applications. Ensuring high quality data and efficient operating procedures for both downhole navigation and rig alignment.


  • Quick set up time
  • At-rig QA/QC control
  • Fast, precise rig alignment
  • High speed, continuous surveying
  • Repeatable precision at any angle
  • User-friendly, intuitive operating software
  • Supported hole sizes: Ø28mm to Ø400mm
  • Quick, precious rig alignment & collar pick up
  • Ultra-versatile, suited to a wide range of applications.
  • Seamless data transfer between site and office
  • Simple onsite calibration check procedures
  • Comprehensive QA Analysis & Reporting
  • Scandinavian made – Robust and reliable
  • Available for purchase or rental

Your options

Buy our product

Request a proposal to buy the products you need for this application.

Request proposal

Rent our product

Request a proposal to rent the products you need for this application.

Request proposal
